Complex Piping Geometry Is quick and easy

Designing piping is very straight forward, once the classes are set up draw centerline, associate it with a class and diameter and let ISOPipe do the rest.

Making Piping classes is straight forward

Using Pipe Class builder allows the modeller to build from centerlines with no input from the operator. once set up the classes drive the modelling and start to create the intelligence in the model from the start

Creating new Valves and equipment can be done using the catalog builder

Design Exotic non standard equipment is not a problem and new geometries can be made on demand to keep your model accurate and clean

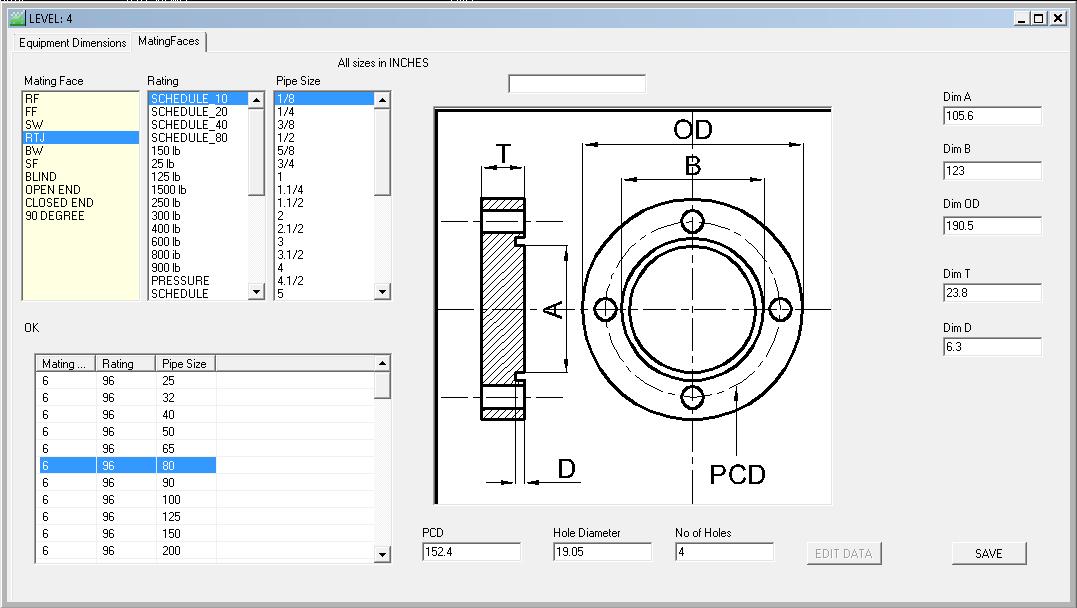

Create Custom and non-standard flanges

Create any flange you like for your equipment with the mating face editor.

Create Custom and non-standard Steel Sections

Create any standard steel extrusion and any shape you wish for custom extrusion and create polyhedrons from point data.
